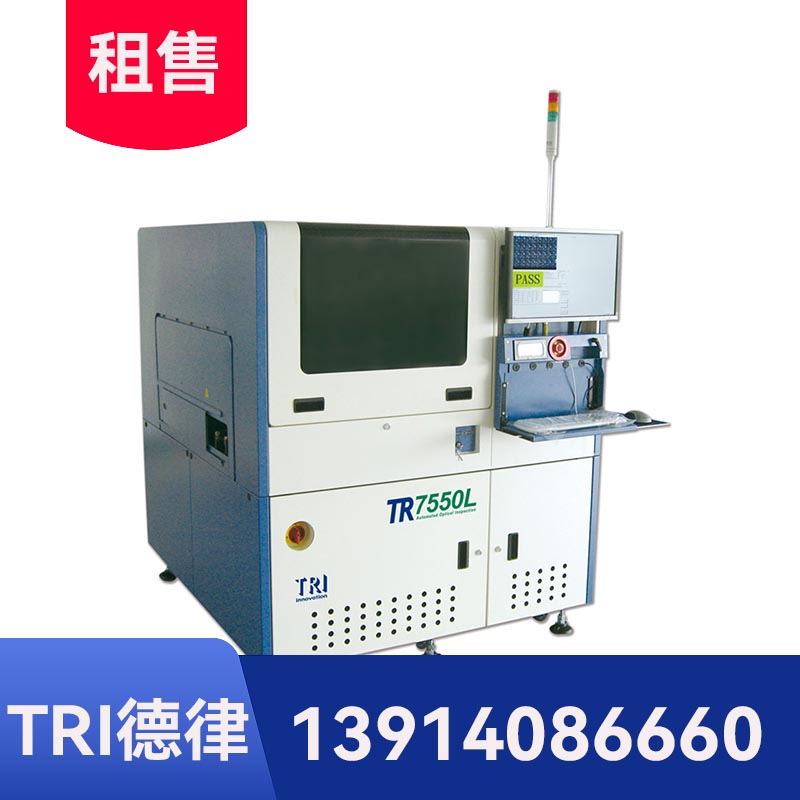

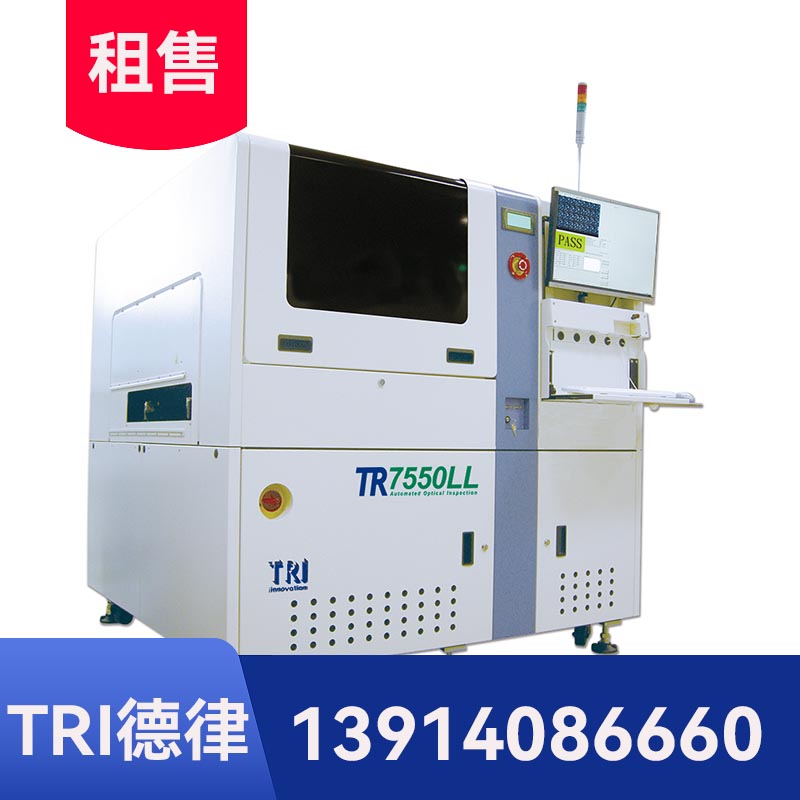

德律TR7550介绍：
配备上视3-CCD彩色相机及四个倾斜角度相机以优化测试涵盖率，TR7550自动光学检测机利用TRI的动态取像技术，能避免如走停式取像所产生的震动，提供更精准稳定的炉前炉后检测。搭配多区域且高弹性的RGB+W彩色光源系统，配合低角度的光源设计，可提供极性及黑色元器件更好的检测方案，并且可针对无铅和传统组装电路板上的微小元件01005及提供更精准稳定的检测能力。
德律TR7550特性：
1.高速在线型彩色AOI具备完整检测涵盖范围
2.精准的3-CCD彩色相机可检测01005微小元件
3.先进的RGB+W光源设定系统，可以提升锡点与标点之检测力
4.线性马达之X-Y 平台提供无震动精准检测
德律TR7550规格：
Optical System
| Imaging Method | Dynamic Imaging |
| Top Camera | XGA 3CCD color camera |
| Angle Camera | XGA mono camera |
| Imaging Resolution | 10 µm, 15 µm, 20 µm, 25 µm (factory setting) |
| Lighting | Multi-segment, multi-angle RGB LED (coaxial lighting optional) |
| 3D Technology | N/A |
| Max. 3D Range | N/A |
Inspection Performance
| Imaging Speed | 10 µm: 18 cm²/sec 15 µm: 40 cm²/sec 20 µm: 72 cm²/sec 25 µm: 110 cm²/sec |
Motion Table & Control
| X-Axis Control | Linear motor + linear scale with DSP-based controller |
| Y-Axis Control | Linear motor + linear scale with DSP-based controller |
| Z-Axis Control | N/A |
| X-Y Axis Resolution | 1 µm |
Board Handling
| Max PCB Size | TR7550 : 510 x 460 mm TR7550L: 660 x 610 mm TR7550LL: 850 x 610 mm |
| PCB Thickness | 0.6-5 mm |
| Max PCB Weight | TR7550 : 3 kg (5 kg optional) TR7550L : 5 kg (8 kg optional) TR7550LL : 5 kg (8 kg optional) |
| Top Clearance | 40 mm |
| Bottom Clearance | 40 mm |
| Edge Clearance | TR7550 : 3.5 mm TR7550L : 3 mm TR7550LL : 3 mm |
| Conveyor | Inline Height: 880 – 920 mm * SMEMA Compatible |
Inspection Functions
| Component | Missing Tombstoning Billboarding Polarity Rotation Shift Wrong Marking (OCV) Defective Upside Down Lifted Component |
| Solder | Excess Solder Insufficient Solder Bridging Through-hole Pins Lifted Lead Golden Finger Scratch/Contamination |
